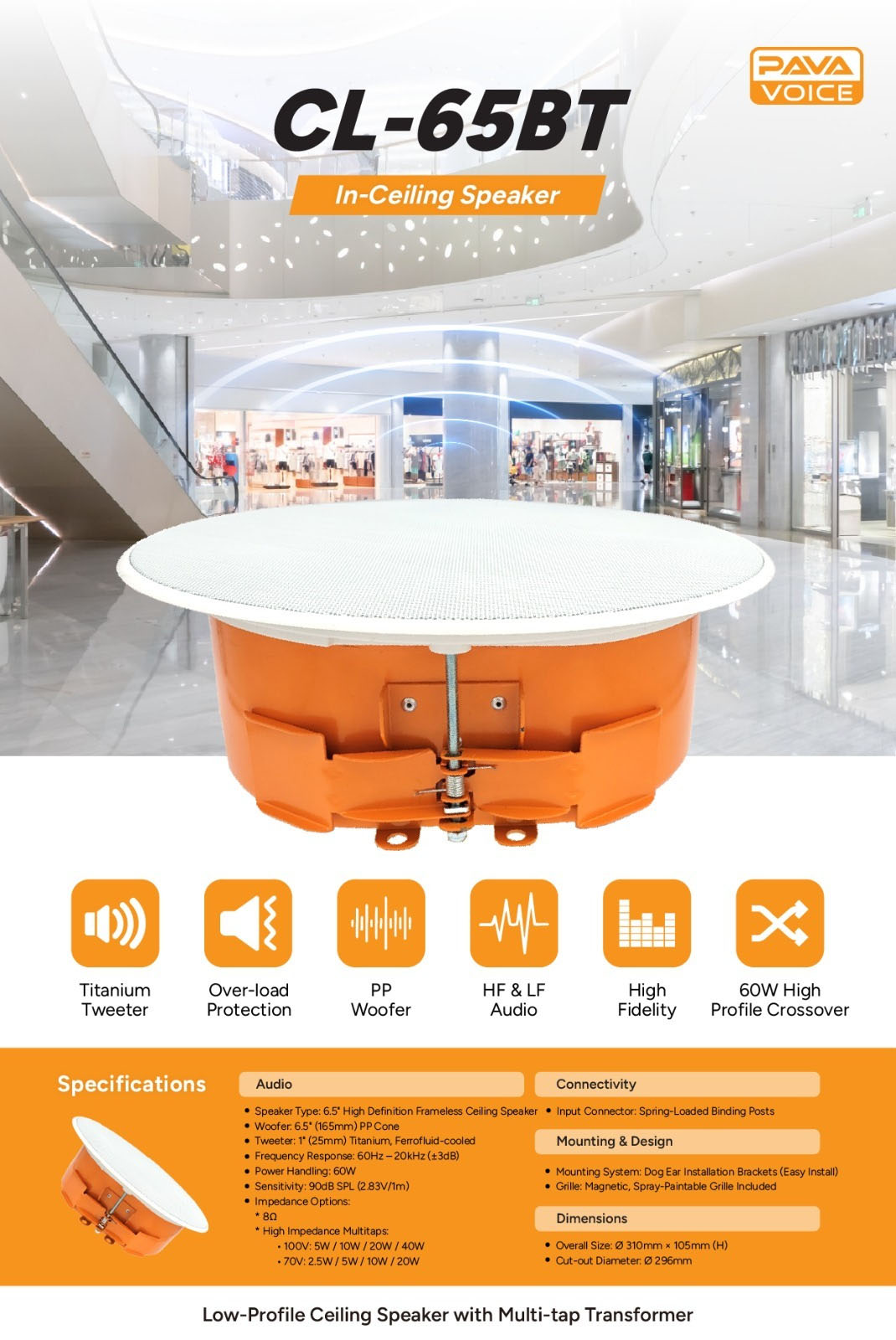

PAVAVOICE CL-65BT 6.5" Low-Profile Ceiling Speaker with Multi-Tap Transformer Malaysia

High-Fidelity 70V/100V Ceiling Speaker for BGM & Public Address Systems

The PAVAVOICE CL-65BT is a professional 6.5-inch low-profile ceiling speaker with a multi-tap transformer, designed for background music, foreground music and public address applications.

Built for commercial spaces where both sound quality and discreet installation matter, the CL-65BT combines a 6.5-inch PP cone woofer, 1-inch titanium dome swivel tweeter, 60W power handling and selectable 70V / 100V transformer taps in a compact ceiling-mounted design.

Its wide frequency response, high sensitivity and frameless magnetic grille make it suitable for hotels, meeting halls, restaurants, themed venues and other commercial environments requiring clear distributed audio with a clean architectural finish.

6.5" PP Cone Woofer

The CL-65BT uses a 6.5-inch (165mm) PP cone woofer designed for reliable full-range sound reproduction in commercial ceiling audio systems.

It is suitable for both background music and foreground music applications where improved clarity and wider frequency response are required.

1" Titanium Swivel Tweeter

High-frequency reproduction is handled by a 1-inch titanium ferrofluid-cooled tweeter.

The product description also identifies it as a swivel tweeter, allowing the high-frequency direction to be adjusted according to the listening area.

This can be especially useful in meeting areas, restaurants and other commercial spaces where the speaker may not be positioned directly above the primary listening zone.

70V / 100V Multi-Tap Transformer

One of the CL-65BT's key advantages is its built-in multi-tap transformer for 70V and 100V distributed audio systems.

100V Power Taps

5W / 10W / 20W / 40W

70V Power Taps

2.5W / 5W / 10W / 20W

These selectable power taps make it easier to design distributed speaker systems across different room sizes and coverage requirements.

8Ω or High-Impedance Operation

In addition to 70V / 100V operation, the CL-65BT also supports:

8Ω Low-Impedance Operation

This gives system designers more flexibility when integrating the speaker into different amplifier and audio-system configurations.

60W Power Handling

The CL-65BT is rated for:

60W Power Handling

Combined with a sensitivity of 90dB SPL (2.83V / 1m), the speaker is designed to provide efficient and clear audio reproduction for professional indoor applications.

60Hz–20kHz Frequency Response

The specified frequency response is:

60Hz–20kHz ±3dB

This wide frequency range supports both speech intelligibility and music reproduction, making the CL-65BT suitable for mixed BGM + PA environments.

Low-Profile Design with Thin Metal Backcan

The CL-65BT is specifically designed as a low-profile ceiling speaker.

Its thin ceiling metal backcan makes it particularly suitable for ceiling spaces where installation depth is limited.

This is an important advantage for commercial interiors with shallow ceiling voids or restricted installation space.

Frameless Magnetic Grille

The CL-65BT uses a frameless magnetic grille to maintain a clean architectural appearance after installation.

The grille is also:

Spray Paintable

allowing it to be visually matched with different ceiling finishes and interior designs.

Easy Dog Ear Installation

Installation is simplified through dog ear mounting brackets, allowing the speaker to be secured into the ceiling after the required cut-out has been prepared.

The specified cut-out diameter is:

Ø296mm

while the complete speaker measures:

Ø310mm × 105mm high.

Key Features

• 6.5" Low-Profile Ceiling Speaker
• 6.5" PP Cone Woofer
• 1" Titanium Ferrofluid-Cooled Swivel Tweeter
• 60W Power Handling
• 90dB Sensitivity
• 60Hz–20kHz ±3dB Frequency Response
• 8Ω Low-Impedance Operation
• Built-In 70V / 100V Multi-Tap Transformer
• 100V Taps: 5W / 10W / 20W / 40W
• 70V Taps: 2.5W / 5W / 10W / 20W
• Frameless Magnetic Grille
• Spray-Paintable Grille
• Thin Ceiling Metal Backcan
• Spring-Loaded Binding Posts
• Dog Ear Installation Brackets
• Designed for BGM & Public Address Systems

Ideal Applications

The PAVAVOICE CL-65BT is suitable for hotels, meeting halls, restaurants, cafés, themed venues, retail spaces, offices, commercial buildings, background music systems, foreground music systems and public address installations.

It is particularly suitable for projects requiring high-quality distributed ceiling audio with 70V / 100V operation and limited ceiling installation depth.

Technical Specifications

Technical specifications are based on the supplied PAVAVOICE CL-65BT product sheet.

Frequently Asked Questions

What is the PAVAVOICE CL-65BT?

The CL-65BT is a 6.5-inch low-profile ceiling speaker with a built-in 70V / 100V multi-tap transformer, designed for BGM and public address applications.

Does the CL-65BT support both 70V and 100V systems?

Yes. It supports 70V and 100V distributed audio systems, as well as 8Ω low-impedance operation.

What are the available transformer taps?

The CL-65BT supports 5W, 10W, 20W and 40W at 100V, and 2.5W, 5W, 10W and 20W at 70V.

Is the CL-65BT suitable for shallow ceilings?

Yes. Its low-profile design and thin metal backcan make it suitable for ceiling spaces with limited installation depth.

Can the grille be painted?

Yes. The CL-65BT includes a spray-paintable magnetic grille for easier integration with different interior designs.

PAVAVOICE CL-65BT Ceiling Speaker Malaysia

Looking for a 70V/100V ceiling speaker, low-profile ceiling speaker, BGM ceiling speaker or public address ceiling speaker in Malaysia?

The PAVAVOICE CL-65BT combines high-fidelity audio performance with flexible distributed-audio system integration.

Its combination of:

6.5" Speaker → 60W → 70V / 100V Multi-Tap → 8Ω → Low-Profile Backcan → BGM / Public Address → Malaysia

makes it a strong option for professional commercial audio projects requiring both clean installation and flexible amplifier compatibility.

Contact PAVA for CL-65BT Quotation

Contact PAVA for product information, transformer tap selection, speaker quantity planning, amplifier matching, ceiling installation requirements and project quotation.
